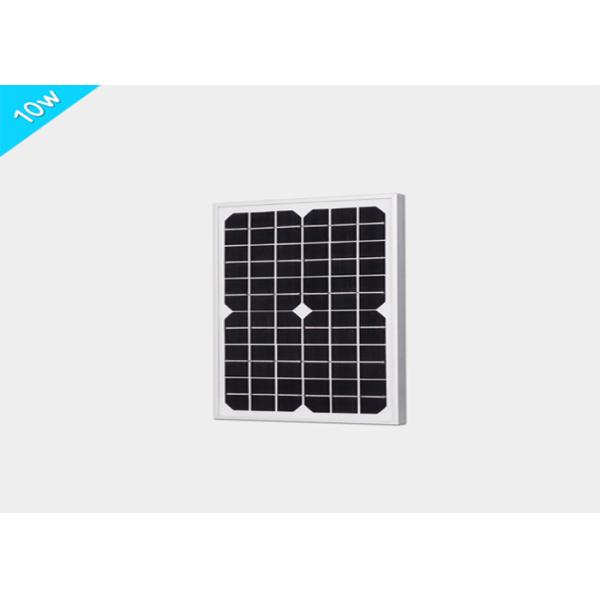

Custom Solar Panel with SunPower Cell High-efficiency Solar Panel for Outdoor Solar Powered Products
1. Details Description:
This kind of solar panel can be widely used for different places such as solar mobile phone, Bluetooth headsets, GPS, wearable devices, IOT, active FRID, solar lamp, boats, cars, caravans, bus, RV etc.
2. Features of our Monocrystalline 100W solar panel
SunPower solar cells are one of the most frequently requested solar cell brands on the market, and for good reason. Their cells are some of the most efficient ones on the market today. Our Sunpower Solar Panel can reach to around 21% to 24% efficiency. And PET / ETFE lamination available, we can make it a flexible design or fixed design base on your need and different applications.
| Dimension(MM) | Power(W) | Operating Voltage(V) | Operating Current(MA) | Open-circuit Voltage(V) | Short-circuit Current(MA) |
| 125*72*2.0 | 1.35 | 5.5 | 272 | 5.5 | 280 |
| 131*82*2.0 | 1.1 | 6.0 | 183 | 7.5 | 190 |
| 132*173*1.6 | 1.5 | 5.5 | 272 | 6.4 | 180 |
| 133*75*2.8 | 1.6 | 5.5 | 290 | 7.0 | 300 |
| 133*81*2.7 | 0.9 | 6.6 | 136 | 7.9 | 145 |
| 134*65*2.4 | 1.3 | 5.0 | 256 | 6.5 | 268 |
| 138*67*1.6 | 1.0 | 3.3 | 312 | 4.0 | 320 |
| 140*140*2.2 | 2.96 | 7.7 | 384 | 10.0 | 390 |
| 142*80*1.6 | 1.73 | 4.95 | 350 | 5.5 | 365 |
| 143*81*2.0 | 1.5 | 5.5 | 274 | 6.4 | 290 |
3. Widely Applications of our solar panel:
Our solar panels adopt high-efficiency SunPower cells which ranking in the top of the solar cell makers. The unique all-back-contact cell technology makes the SunPower cell are more efficient because they use available sunlight that others waste. It maximizes the use of available sunlight by exposing the entire front surface of the cell to the sun. Besides, their special structure and manufacturing process such as an anti-reflective coating to the front surface of the cells also make it capture more of the sun’s light.
The Sunpower cell has features such as Maximum light capture, Reduced resistive losses, Minimum recombination loss, and improved material absorption. All these characteristics make it has a high efficiency of 21% to 24%.
Product Tags:
|
|

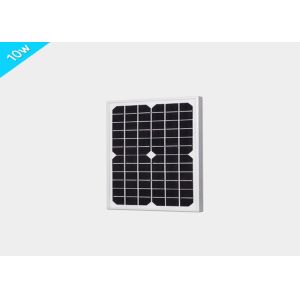

DS-340240 Monocrystalline High Efficiency Solar Panels For Outdoor Solar Powered Products Images
|
