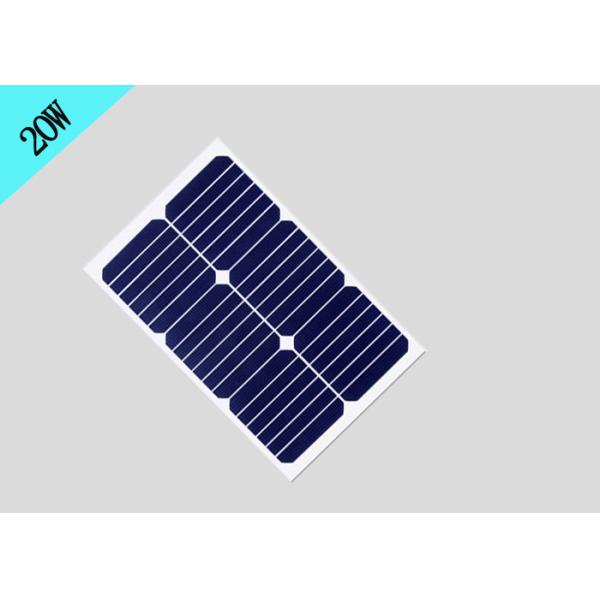

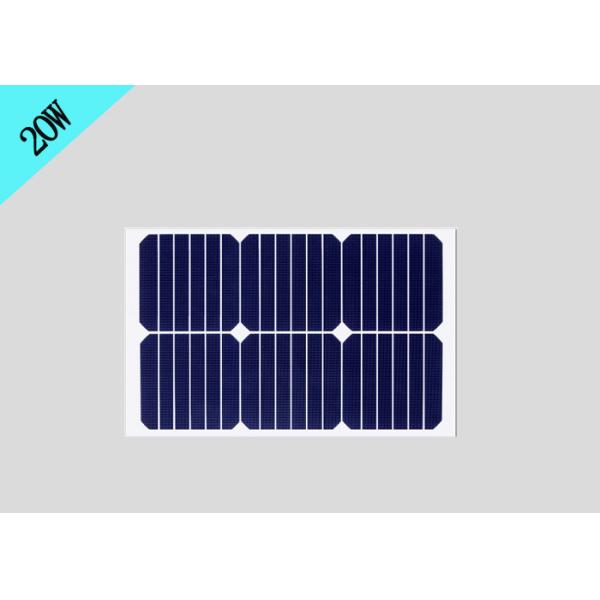

ETFE Laminated Monocrystalline Silicon Solar Cells Low Power Customizable
1. Description and Advantages:
As already mentioned, PV panels made from monocrystalline solar cells are able to convert the highest amount of solar energy into electricity of any type of flat solar panel. Consequently, if your goal is to produce the most electricity from a specific area (e.g., on a roof) this type of panel should certainly be considered.
Monocrystalline solar cells consist of a single silicon crystal (c-Si) and have the highest level of efficiency at approximately 20% compared to other silicon cells. It has a typical black to bluish coloring and is the preferred choice when there is a limited surface available to build a solar PV system. And the minimum lifetime of 20 years has been proven in solar projects for many years.
2. Features and Parameter:
Our Monocrystalline Solar Panels have features such as Long lifespan, competitive price, and high efficiency. We adopt reliable quality cell and other raw materials (EVA, PET, TPT etc) for all our solar panels. Besides, we have more than 10 years experience in manufacturing solar panel which makes us professional enough for the solar panel production.
| Dimension(MM) | Power(W) | Operating Voltage(V) | Operating Current(MA) | Open-circuit Voltage(V) | Short-circuit Current(MA) |
| 148*65*1.6 | 1.4 | 5.0 | 280 | 6.5 | 290 |
| 150*40*0.8 | 0.6 | 5.5 | 105 | 6.4 | 110 |
| 150*76*2.4 | 1.5 | 5.5 | 272 | 6.4 | 285 |
| 150*135*3.0 | 2.6 | 6.0 | 430 | 7.1 | 450 |
| 170*170*2.0 | 3.0 | 5.5 | 540 | 6.4 | 560 |
| 175*166*3.3 | 4.0 | 5.0 | 800 | 6.5 | 820 |
| 180*115*3.0 | 3.0 | 6.0 | 500 | 7.1 | 525 |
| 183*65*2.0 | 1.0 | 5.5 | 174 | 6.5 | 185 |
| 221*182*3.0 | 5.4 | 5.5 | 980 | 6.5 | 1000 |
| 235*135*2.4 | 4.0 | 5.0 | 800 | 6.5 | 820 |
3. Applications of our Monocrystalline silicon solar panel
We provide high quality and high level of efficiency solar panel to our customer. Our Monocrystalline Solar Panel can be widely used in different projects, such as garden light, mobile phone charger, solar power system etc.
